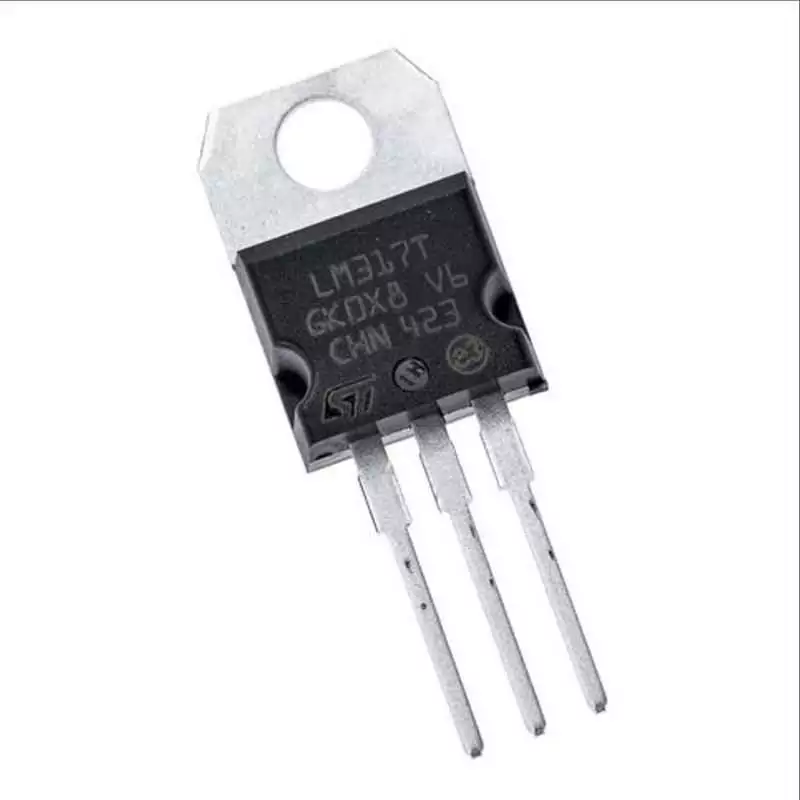

Circuito Integrado LM317T
Estoque: 300
Id do Produto: 468
The LM317 device is an adjustable three-terminal
positive-voltage regulator capable of supplying more
than 1.5 A over an output-voltage range of 1.25 V to
37 V. It requires only two external resistors to set the
output voltage. The device features a typical line
regulation of 0.01% and typical load regulation of
0.1%. It includes current limiting, thermal overload
protection, and safe operating area protection.
Overload protection remains functional even if the
ADJUST terminal is disconnected.
Features
1• Output voltage range adjustable
from 1.25 V to 37 V
• Output current greater than 1.5 A
• Internal short-circuit current limiting
• Thermal overload protection
• Output safe-area compensation
positive-voltage regulator capable of supplying more
than 1.5 A over an output-voltage range of 1.25 V to
37 V. It requires only two external resistors to set the
output voltage. The device features a typical line
regulation of 0.01% and typical load regulation of
0.1%. It includes current limiting, thermal overload
protection, and safe operating area protection.
Overload protection remains functional even if the
ADJUST terminal is disconnected.
Features
1• Output voltage range adjustable
from 1.25 V to 37 V
• Output current greater than 1.5 A
• Internal short-circuit current limiting
• Thermal overload protection
• Output safe-area compensation
Valor:
R$ 2,55
Estoque: 300
