Wireless Charging Module
Id do Produto: 252

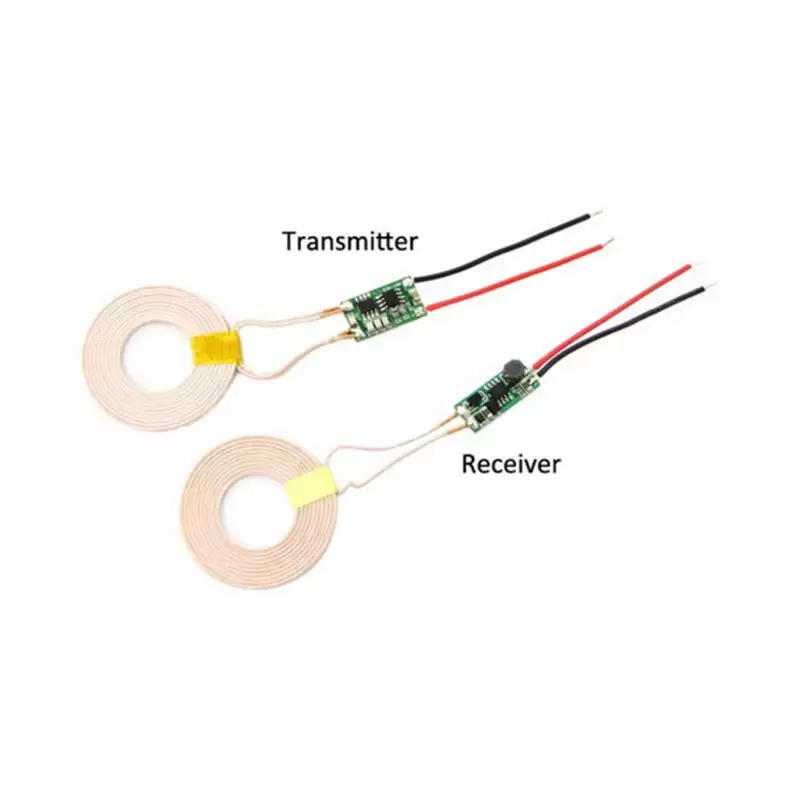

MX002970 Wireless Charging Module - 5V - 1A
Most important of all, you can get the output 5v and 1A with 5v input voltage.
Feature:
High efficiency
stabilized power supply
Input Voltage: 5V dc
Output Current: 1A
Space-saving design
Specification:
Input Voltage: 5Vdc
Input Voltage(limits): 5Vdc
Output Voltage: 5Vdc
Output Current(maximum): 1.2A
Output Current(no-load): 30~50mA
Transmitter Coil Inductance: 3.7uH
Receiver Coil Inductance: 14uH
Transmit-receive distance: 2-10mm
Transmitter :22.1*13.1*3.2mm
Receiver: 24.2*9.8*5.36mm
Coil Diameter: 43mm
Coil Height: 2.3mm
Most important of all, you can get the output 5v and 1A with 5v input voltage.
Feature:
High efficiency
stabilized power supply
Input Voltage: 5V dc
Output Current: 1A
Space-saving design
Specification:
Input Voltage: 5Vdc
Input Voltage(limits): 5Vdc
Output Voltage: 5Vdc
Output Current(maximum): 1.2A
Output Current(no-load): 30~50mA
Transmitter Coil Inductance: 3.7uH
Receiver Coil Inductance: 14uH
Transmit-receive distance: 2-10mm
Transmitter :22.1*13.1*3.2mm
Receiver: 24.2*9.8*5.36mm
Coil Diameter: 43mm
Coil Height: 2.3mm
